Devido às exigências da indústria petrolífera em utilizar equipamentos cada vez mais leves, compactos e com maior resistência, a empresa holandesa Van Beest desenvolveu com sucesso a linha de manilhas Green Pin® - Pino Verde, atendendo as normas DNV e US Fed Spec.
Atualmente, as manilhas Green Pin® são conhecidas mundialmente e em vários segmentos como: indústria offshore e onshore, navegação, portos, estaleiros, usinas de aço, mineração, pesca industrial, etc.
A marca registrada Green Pin®, em combinação com a certificação ISO 9001, garantem qualidade e segurança aos usuários. No Brasil, a Van Beest já comercializa a linha de manilhas Green Pin através de parceria exclusiva com sua rede de distribuidores.

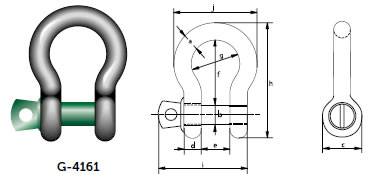

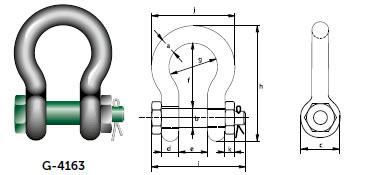

working | diameter | diameter | diameter | width | width | length | width | length | length | width | weight |
---|---|---|---|---|---|---|---|---|---|---|---|
load | bow | pin | eye | eye | inside | inside | bow | bolt | each | ||
limit | |||||||||||
a | b | c | d | e | f | g | h | i | j | ||
t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
0.33 | 5 | 6 | 12 | 5 | 9.5 | 22 | 16 | 36 | 29.5 | 26 | 0.02 |
0.5 | 7 | 8 | 16.5 | 7 | 12 | 29 | 20 | 48.5 | 38 | 34 | 0.05 |
0.75 | 9 | 10 | 20 | 9 | 13.5 | 32 | 22 | 56 | 46.5 | 40 | 0.1 |
1 | 10 | 11 | 22.5 | 10 | 17 | 36.5 | 26 | 63.5 | 54 | 46 | 0.14 |
1.5 | 11 | 13 | 26.5 | 11 | 19 | 43 | 29 | 74 | 59.5 | 51 | 0.19 |
2 | 13.5 | 16 | 34 | 13 | 22 | 51 | 32 | 89 | 73 | 58 | 0.36 |
3.25 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 110 | 89 | 75 | 0.63 |
4.75 | 19 | 22 | 46 | 19 | 31 | 76 | 51 | 129 | 103 | 89 | 1.01 |
6.5 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 119 | 102 | 1.5 |
8.5 | 25 | 28 | 59 | 25 | 43 | 95 | 68 | 164 | 137 | 118 | 2.21 |
9.5 | 28 | 32 | 66 | 28 | 47 | 108 | 75 | 185 | 153 | 131 | 3.16 |
12 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 170 | 147 | 4.31 |
13.5 | 35 | 38 | 80 | 35 | 57 | 133 | 92 | 227 | 186 | 162 | 5.55 |
17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 203 | 175 | 7.43 |
25 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 243 | 216 | 12.84 |
35 | 50 | 57 | 111 | 50 | 83 | 197 | 138 | 331 | 272 | 238 | 18.15 |
42.5 | 57 | 65 | 130 | 57 | 95 | 222 | 160 | 377 | 310 | 274 | 26.29 |
55 | 65 | 70 | 145 | 65 | 105 | 260 | 180 | 433 | 344 | 310 | 37.6 |
working | diameter | diameter | diameter | width | width | length | width | length | length | width | weight |
load | bow | pin | eye | eye | inside | inside | bow | bolt | each | ||
limit | |||||||||||
a | b | c | d | e | f | g | h | i | j | ||
t | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | lbs |
0.33 | 3 / 16 | 1 / 4 | 1 / 2 | 3 / 16 | 3 / 8 | 7 / 8 | 5 / 8 | 1 13 / 32 | 1 5 / 32 | 1 1 / 32 | 0.05 |
0.5 | 1 / 4 | 5 / 16 | 21 / 32 | 9 / 32 | 15 / 32 | 1 5 / 32 | 25 / 32 | 1 29 / 32 | 1 1 / 2 | 1 11 / 32 | 0.11 |
0.75 | 5 / 16 | 3 / 8 | 25 / 32 | 11 / 32 | 17 / 32 | 1 1 / 4 | 7 / 8 | 2 7 / 32 | 1 27 / 32 | 1 9 / 16 | 0.22 |
1 | 3 / 8 | 7 / 16 | 7 / 8 | 13 / 32 | 21 / 32 | 1 7 / 16 | 1 1 / 32 | 2 1 / 2 | 2 1 / 8 | 1 13 / 16 | 0.3 |
1.5 | 7 / 16 | 1 / 2 | 11 / 32 | 7 / 16 | 3 / 4 | 1 11 / 16 | 1 5 / 32 | 2 29 / 32 | 2 11 / 32 | 2 | 0.42 |
2 | 1 / 2 | 5 / 8 | 1 11 / 32 | 1 / 2 | 7 / 8 | 2 | 1 1 / 4 | 3 1 / 2 | 2 7 / 8 | 2 9 / 32 | 0.79 |
3.25 | 5 / 8 | 3 / 4 | 1 9 / 16 | 5 / 8 | 1 1 / 16 | 2 17 / 32 | 1 11 / 16 | 4 11 / 32 | 3 1 / 2 | 2 15 / 16 | 1.38 |
4.75 | 3 / 4 | 7 / 8 | 1 13 / 16 | 3 / 4 | 1 7 / 32 | 3 | 2 | 5 3 / 32 | 4 1 / 16 | 3 1 / 2 | 2.22 |
6.5 | 7 / 8 | 1 | 2 1 / 16 | 7 / 8 | 1 13 / 32 | 3 9 / 32 | 2 9 / 32 | 5 21 / 3 | 4 11 / 16 | 4 1 / 32 | 3.31 |
8.5 | 1 | 1 1 / 8 | 2 5 / 16 | 31 / 32 | 1 11 / 16 | 3 3 / 4 | 2 11 / 16 | 6 15 / 32 | 5 13 / 32 | 4 21 / 32 | 4.86 |
9.5 | 1 1 / 8 | 1 1 / 4 | 2 19 / 32 | 1 3 / 32 | 1 27 / 32 | 4 1 / 4 | 2 15 / 16 | 7 9 / 32 | 6 1 / 32 | 5 5 / 32 | 6.97 |
working | diameter | diameter | diameter | width | width | length | width | length | length | width | thickness | weight |
load | bow | pin | eye | eye | inside | inside | bow | bolt | nut | each | ||
limit | ||||||||||||
a | b | c | d | e | f | g | h | i | j | k | ||
t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
0.5 | 7 | 8 | 16.5 | 7 | 12 | 29 | 20 | 48.5 | 42 | 34 | 4 | 0.06 |
0.75 | 9 | 10 | 20 | 9 | 13.5 | 32 | 22 | 56 | 50 | 40 | 5 | 0.11 |
1 | 10 | 11 | 22.5 | 10 | 17 | 36.5 | 26 | 63.5 | 60 | 46 | 8 | 0.16 |
1.5 | 11 | 13 | 26.5 | 11 | 19 | 43 | 29 | 74 | 67 | 51 | 11 | 0.22 |
2 | 13.5 | 16 | 34 | 13 | 22 | 51 | 32 | 89 | 82 | 58 | 13 | 0.42 |
3.25 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 110 | 98 | 75 | 17 | 0.74 |
4.75 | 19 | 22 | 46 | 19 | 31 | 76 | 51 | 129 | 114 | 89 | 19 | 1.18 |
6.5 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 130 | 102 | 22 | 1.77 |
8.5 | 25 | 28 | 59 | 25 | 43 | 95 | 68 | 164 | 150 | 118 | 25 | 2.58 |
9.5 | 28 | 32 | 66 | 28 | 47 | 108 | 75 | 185 | 166 | 131 | 27 | 3.66 |
12 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 178 | 147 | 30 | 4.91 |
13.5 | 35 | 38 | 80 | 35 | 57 | 133 | 92 | 227 | 197 | 162 | 33 | 6.54 |
17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 202 | 175 | 19 | 8.19 |
25 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 249 | 216 | 23 | 14.22 |
35 | 50 | 57 | 111 | 50 | 83 | 197 | 138 | 331 | 269 | 238 | 26 | 19.53 |
42.5 | 57 | 65 | 130 | 57 | 95 | 222 | 160 | 377 | 301 | 274 | 29 | 28.33 |
55 | 65 | 70 | 145 | 65 | 105 | 260 | 180 | 433 | 330 | 310 | 32 | 39.59 |
85 | 75 | 83 | 162 | 73 | 127 | 329 | 190 | 527 | 380 | 340 | 39 | 62 |
working | diameter | diameter | diameter | width | width | length | width | length | length | width | thickness | weight |
load | bow | pin | eye | eye | inside | inside | bow | bolt | nut | each | ||
limit | ||||||||||||
a | b | c | d | e | f | g | h | i | j | k | ||
t | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | lbs |
0.5 | 1/4 | 5/16 | 21/32 | 9/32 | 15/32 | 1 5/32 | 25/32 | 1 29/32 | 1 21/32 | 1 11/32 | 5/32 | 0.13 |
0.75 | 5/16 | 3/8 | 25/32 | 11/32 | 17/32 | 1 1/4 | 7/8 | 2 7/32 | 1 31/32 | 1 9/16 | 3/16 | 0.25 |
1 | 3/8 | 7/16 | 7/8 | 13/32 | 21/32 | 1 7/16 | 1 1/32 | 2 1/2 | 2 3/8 | 1 13/16 | 5/16 | 0.34 |
1.5 | 7/16 | 1/2 | 1 1/32 | 7/16 | 3/4 | 1 11/16 | 1 5/32 | 2 29/32 | 2 5/8 | 2 | 7/16 | 0.48 |
2 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 2 | 1 1/4 | 3 1/2 | 3 7/32 | 2 9/32 | 1/2 | 0.92 |
3.25 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 17/32 | 1 11/16 | 4 11/32 | 3 27/32 | 2 15/16 | 21/32 | 1.62 |
4.75 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 3 | 2 | 5 3/32 | 4 1/2 | 3 1/2 | 3/4 | 2.59 |
6.5 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 3 9/32 | 2 9/32 | 5 21/32 | 5 1/8 | 4 1/32 | 7/8 | 3.9 |
8.5 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 3/4 | 2 11/16 | 6 15/32 | 5 29/32 | 4 21/32 | 31/32 | 5.69 |
9.5 | 1 1/8 | 1 1/4 | 2 19/32 | 1 3/32 | 1 27/32 | 4 1/4 | 2 15/16 | 7 9/32 | 6 17/32 | 5 5/32 | 1 1/16 | 8.06 |
12 | 1 1/4 | 1 3/8 | 2 27/32 | 1 1/4 | 2 | 4 17/32 | 3 9/32 | 7 29/32 | 7 | 5 25/32 | 1 3/16 | 10.81 |
13.5 | 1 3/8 | 1 1/2 | 3 5/32 | 1 3/8 | 2 1/4 | 5 1/4 | 3 5/8 | 8 15/16 | 7 3/4 | 6 3/8 | 1 5/16 | 14.42 |
17 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 3/4 | 3 29/32 | 9 13/16 | 7 15/16 | 6 7/8 | 3/4 | 18.06 |
25 | 1 3/4 | 2 | 4 1/16 | 1 25/32 | 2 29/32 | 7 | 4 31/32 | 11 13/16 | 9 13/16 | 8 1/2 | 29/32 | 31.34 |
35 | 2 | 2 1/4 | 4 3/8 | 1 31/32 | 3 9/32 | 7 3/4 | 5 7/16 | 13 1/32 | 10 19/32 | 9 3/8 | 1 1/32 | 43.77 |
42.5 | 2 1/4 | 2 9/16 | 5 1/8 | 2 1/4 | 3 3/4 | 8 3/4 | 6 5/16 | 14 27/32 | 11 27/32 | 10 23/32 | 1 5/32 | 62.46 |
55 | 2 1/2 | 2 3/4 | 5 23/32 | 2 9/16 | 4 1/8 | 10 1/4 | 7 3/32 | 17 1/16 | 13 | 12 7/32 | 1 1/4 | 87.27 |
85 | 3 | 3 1/4 | 6 3/8 | 2 7/8 | 5 | 12 15/16 | 7 15/32 | 20 3/4 | 14 31/32 | 13 3/8 | 1 17/32 | 136.69 |

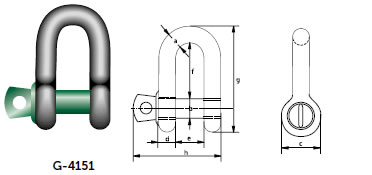

working | diameter | diameter | diameter | width | width | length | length | length | weight |
load | bow | pin | eye | eye | inside | inside | bolt | each | |
limit | |||||||||
a | b | c | d | e | f | g | h | ||
t | mm | mm | mm | mm | mm | mm | mm | mm | kg |
0.33 | 5 | 6 | 12 | 5 | 9.5 | 19 | 33 | 29.5 | 0.02 |
0.5 | 7 | 8 | 16.5 | 7 | 12 | 22 | 41.5 | 38 | 0.05 |
0.75 | 9 | 10 | 20 | 9 | 13.5 | 26 | 50 | 46.5 | 0.09 |
1 | 10 | 11 | 22.5 | 10 | 17 | 32 | 59 | 54 | 0.14 |
1.5 | 11 | 13 | 26.5 | 11 | 19 | 37 | 68 | 59.5 | 0.19 |
2 | 13.5 | 16 | 34 | 13 | 22 | 43 | 81 | 73 | 0.32 |
3.25 | 16 | 19 | 40 | 16 | 27 | 51 | 97 | 89 | 0.54 |
4.75 | 19 | 22 | 46 | 19 | 31 | 59 | 112 | 103 | 0.87 |
6.5 | 22 | 25 | 52 | 22 | 36 | 73 | 134 | 119 | 1.34 |
8.5 | 25 | 28 | 59 | 25 | 43 | 85 | 154 | 137 | 2.08 |
9.5 | 28 | 32 | 66 | 28 | 47 | 90 | 167 | 153 | 2.77 |
12 | 32 | 35 | 72 | 32 | 51 | 94 | 180 | 170 | 3.72 |
13.5 | 35 | 38 | 80 | 35 | 57 | 115 | 209 | 186 | 5.14 |
17 | 38 | 42 | 88 | 38 | 60 | 127 | 230 | 203 | 6.85 |
25 | 45 | 50 | 103 | 45 | 74 | 149 | 271 | 243 | 11.45 |
35 | 50 | 57 | 111 | 50 | 83 | 171 | 305 | 272 | 16.86 |
42.5 | 57 | 65 | 130 | 57 | 95 | 190 | 345 | 310 | 24.61 |
55 | 65 | 70 | 145 | 65 | 105 | 203 | 376 | 344 | 32.65 |
working | diameter | diameter | diameter | width | width | length | length | length | weight |
load | bow | pin | eye | eye | inside | inside | bolt | each | |
limit | |||||||||
a | b | c | d | e | f | g | h | ||
t | inch | inch | inch | inch | inch | inch | inch | inch | lbs |
0.33 | 3/16 | 1/4 | 15/32 | 3/16 | 3/8 | 3/4 | 1 5/16 | 1 5/32 | 0.04 |
0.5 | 1/4 | 5/16 | 21/32 | 9/32 | 15/32 | 7/8 | 1 5/8 | 1 1/2 | 0.11 |
0.75 | 5/16 | 3/8 | 25/32 | 11/32 | 17/32 | 1 1/32 | 1 31/32 | 1 27/32 | 0.2 |
1 | 3/8 | 7/16 | 7/8 | 13/32 | 21/32 | 1 1/4 | 2 5/16 | 2 1/8 | 0.3 |
1.5 | 7/16 | 1/2 | 1 1/32 | 7/16 | 3/4 | 1 15/32 | 2 11/16 | 2 11/32 | 0.42 |
2 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 1 11/16 | 3 3/16 | 2 7/8 | 0.7 |
3.25 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 | 3 13/16 | 3 1/2 | 1.19 |
4.75 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 2 5/16 | 4 13/32 | 4 1/16 | 1.92 |
6.5 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 2 7/8 | 5 9/32 | 4 11/16 | 2.95 |
8.5 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 11/32 | 6 1/16 | 5 13/32 | 4.59 |
9.5 | 1 1/8 | 1 1/4 | 2 19/32 | 1 3/32 | 1 27/32 | 3 17/32 | 6 9/16 | 6 1/32 | 6.1 |
12 | 1 1/4 | 1 3/8 | 2 27/32 | 1 1/4 | 2 | 3 11/16 | 7 3/32 | 6 11/16 | 8.2 |
13.5 | 1 3/8 | 1 1/2 | 3 5/32 | 1 3/8 | 2 1/4 | 4 17/32 | 8 7/32 | 7 5/16 | 11.33 |
17 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 | 9 1/16 | 8 | 15.1 |
25 | 1 3/4 | 2 | 4 1/16 | 1 25/32 | 2 29/32 | 5 7/8 | 10 21/32 | 9 9/16 | 25.23 |
35 | 2 | 2 1/4 | 4 3/8 | 1 31/32 | 3 9/32 | 6 23/32 | 12 | 10 23/32 | 37.17 |
42.5 | 2 1/4 | 2 9/16 | 5 1/8 | 2 1/4 | 3 3/4 | 7 15/32 | 13 19/32 | 12 7/32 | 54.26 |
55 | 2 1/2 | 2 3/4 | 5 23/32 | 2 9/16 | 4 1/8 | 8 | 14 13/16 | 13 17/32 | 71.98 |

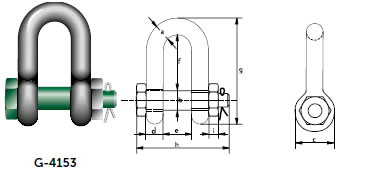

working | diameter | diameter | diameter | width | width | length | length | length | thickness | weight |
load | bow | pin | eye | eye | inside | inside | bolt | nut | each | |
limit | ||||||||||
a | b | c | d | e | f | g | h | i | ||
t | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
2 | 13.5 | 16 | 34 | 13 | 22 | 43 | 81 | 82 | 13 | 0.39 |
3.25 | 16 | 19 | 40 | 16 | 27 | 51 | 97 | 98 | 17 | 0.67 |
4.75 | 19 | 22 | 46 | 19 | 31 | 59 | 112 | 114 | 19 | 1.08 |
6.5 | 22 | 25 | 52 | 22 | 36 | 73 | 134 | 130 | 22 | 1.66 |
8.5 | 25 | 28 | 59 | 25 | 43 | 85 | 154 | 150 | 25 | 2.46 |
9.5 | 28 | 32 | 66 | 28 | 47 | 90 | 167 | 166 | 27 | 3.4 |
12 | 32 | 35 | 72 | 32 | 51 | 94 | 180 | 178 | 30 | 4.51 |
13.5 | 35 | 38 | 80 | 35 | 57 | 115 | 209 | 197 | 33 | 6.1 |
17 | 38 | 42 | 88 | 38 | 60 | 127 | 230 | 202 | 19 | 7.63 |
25 | 45 | 50 | 103 | 45 | 74 | 149 | 271 | 249 | 23 | 12.88 |
35 | 50 | 57 | 111 | 50 | 83 | 171 | 305 | 269 | 26 | 17.35 |
42.5 | 57 | 65 | 130 | 57 | 95 | 190 | 345 | 301 | 29 | 25.94 |
55 | 65 | 70 | 145 | 65 | 105 | 203 | 376 | 330 | 32 | 35.33 |
85 | 75 | 83 | 162 | 73 | 127 | 229 | 427 | 380 | 39 | 52.97 |
working | diameter | diameter | diameter | width | width | length | length | length | thickness | weight |
load | bow | pin | eye | eye | inside | inside | bolt | nut | each | |
limit | ||||||||||
a | b | c | d | e | f | g | h | i | ||
t | inch | inch | inch | inch | inch | inch | inch | inch | inch | lbs |
2 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 1 11/16 | 3 3/16 | 3 7/32 | 1/2 | 0.85 |
3.25 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 | 3 13/16 | 3 27/32 | 21/32 | 1.48 |
4.75 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 2 5/16 | 4 13/32 | 4 1/2 | 3/4 | 2.39 |
6.5 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 2 7/8 | 5 9/32 | 5 1/8 | 7/8 | 3.66 |
8.5 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 11/32 | 6 1/16 | 5 29/32 | 31/32 | 5.42 |
9.5 | 1 1/8 | 1 1/4 | 2 19/32 | 1 3/32 | 1 27/32 | 3 17/32 | 6 9/16 | 6 17/32 | 1 1/16 | 7.5 |
12 | 1 1/4 | 1 3/8 | 2 27/32 | 1 1/4 | 2 | 3 11/16 | 7 3/32 | 7 | 1 3/16 | 9.95 |
13.5 | 1 3/8 | 1 1/2 | 3 5/32 | 1 3/8 | 2 1/4 | 4 17/32 | 8 7/32 | 7 3/4 | 1 5/16 | 13.45 |
17 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 | 9 1/16 | 7 15/16 | 3/4 | 16.82 |
25 | 1 3/4 | 2 | 4 1/16 | 1 25/32 | 2 29/32 | 5 7/8 | 10 21/32 | 9 13/16 | 29/32 | 28.4 |
35 | 2 | 2 1/4 | 4 3/8 | 1 31/32 | 3 9/32 | 6 23/32 | 12 | 10 19/32 | 1 1/32 | 38.25 |
42.5 | 2 1/4 | 2 9/16 | 5 1/8 | 2 1/4 | 3 3/4 | 7 15/32 | 13 19/32 | 11 27/32 | 1 5/32 | 57.19 |
55 | 2 1/2 | 2 3/4 | 5 23/32 | 2 9/16 | 4 1/8 | 8 | 14 13/16 | 13 | 1 1/4 | 77.89 |
85 | 3 | 3 1/4 | 6 3/8 | 2 7/8 | 5 | 9 1/32 | 16 13/16 | 14 31/32 | 1 17/32 | 116.77 |

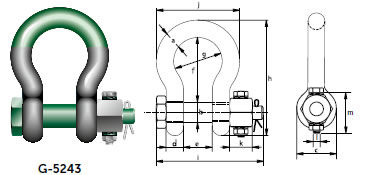

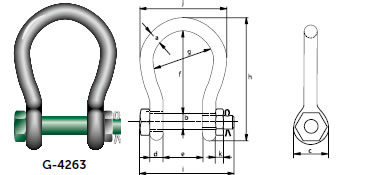

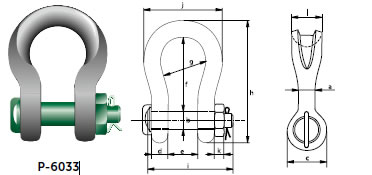

working | diameter | diameter | diameter | width | width | length | width | length | length | width | thickness | weight |
load | bow | pin | eye | eye | inside | inside | bow | bolt | nut | each | ||
limit | ||||||||||||
a | b | c | d | e | f | g | h | i | j | k | ||
t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
120 | 95 | 95 | 208 | 95 | 147 | 400 | 238 | 647 | 453 | 428 | 50 | 110 |
150 | 105 | 108 | 238 | 105 | 169 | 410 | 275 | 688 | 496 | 485 | 50 | 160 |
200 | 120 | 130 | 279 | 120 | 179 | 513 | 290 | 838 | 564 | 530 | 70 | 235 |
250 | 130 | 140 | 299 | 130 | 205 | 554 | 305 | 904 | 614 | 565 | 70 | 295 |
300 | 140 | 150 | 325 | 140 | 205 | 618 | 305 | 996 | 644 | 585 | 80 | 368 |
400 | 170 | 175 | 376 | 164 | 231 | 668 | 325 | 1114 | 690 | 665 | 70 | 560 |
500 | 180 | 185 | 398 | 164 | 256 | 718 | 350 | 1190 | 720 | 710 | 70 | 685 |
600 | 200 | 205 | 444 | 189 | 282 | 718 | 375 | 1243 | 810 | 775 | 70 | 880 |
700 | 210 | 215 | 454 | 204 | 308 | 718 | 400 | 1263 | 870 | 820 | 70 | 980 |
800 | 210 | 220 | 464 | 204 | 308 | 718 | 400 | 1270 | 870 | 820 | 70 | 1100 |
900 | 220 | 230 | 485 | 215 | 328 | 718 | 420 | 1296 | 920 | 860 | 70 | 1280 |
1000 | 240 | 240 | 515 | 215 | 349 | 718 | 420 | 1336 | 940 | 900 | 70 | 1460 |
1250 | 260 | 270 | 585 | 230 | 369 | 768 | 450 | 1456 | 1025 | 970 | 70 | 1990 |
1500 | 280 | 290 | 625 | 230 | 369 | 818 | 450 | 1556 | 1025 | 1010 | 70 | 2400 |
working | diameter | diameter | diameter | width | width | length | width | length | length | width | thickness | weight |
load | bow | pin | eye | eye | inside | inside | bow | bolt | nut | each | ||
limit | ||||||||||||
a | b | c | d | e | f | g | h | i | j | k | ||
t | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | lbs |
120 | 3 3/4 | 3 3/4 | 8 3/16 | 3 3/4 | 5 25/32 | 15 3/4 | 9 3/8 | 25 15/32 | 17 27/32 | 16 27/32 | 1 31/32 | 243 |
150 | 4 1/8 | 4 1/4 | 9 3/8 | 4 1/8 | 6 21/32 | 16 5/32 | 10 13/16 | 27 3/32 | 19 17/32 | 19 3/32 | 1 31/32 | 353 |
200 | 4 23/32 | 5 1/8 | 10 31/32 | 4 23/32 | 7 1/16 | 20 3/16 | 11 13/32 | 33 | 22 3/16 | 20 7/8 | 2 3/4 | 518 |
250 | 5 1/8 | 5 1/2 | 11 25/32 | 5 1/8 | 8 1/16 | 21 13/16 | 12 | 35 19/32 | 24 5/32 | 22 1/4 | 2 3/4 | 650 |
300 | 5 1/2 | 5 29/32 | 12 25/32 | 5 1/2 | 8 1/16 | 24 11/32 | 12 | 39 7/32 | 25 11/32 | 23 1/32 | 3 5/32 | 811 |
400 | 6 11/16 | 6 7/8 | 14 13/16 | 6 15/32 | 9 3/32 | 26 5/16 | 12 25/32 | 43 27/32 | 27 5/32 | 26 3/16 | 2 3/4 | 1235 |
500 | 7 3/32 | 7 9/32 | 15 21/32 | 6 15/32 | 10 3/32 | 28 9/32 | 13 25/32 | 46 27/32 | 28 11/32 | 27 15/16 | 2 3/4 | 1510 |
600 | 7 7/8 | 8 1/16 | 17 15/32 | 7 7/16 | 11 3/32 | 28 9/32 | 14 3/4 | 48 15/16 | 31 7/8 | 30 1/2 | 2 3/4 | 1940 |
700 | 8 9/32 | 8 15/32 | 17 7/8 | 8 1/32 | 12 1/8 | 28 9/32 | 15 3/4 | 49 23/32 | 34 1/4 | 32 9/32 | 2 3/4 | 2161 |
800 | 8 9/32 | 8 21/32 | 18 9/32 | 8 1/32 | 12 1/8 | 28 9/32 | 15 3/4 | 50 | 34 1/4 | 32 9/32 | 2 3/4 | 2425 |
900 | 8 21/32 | 9 1/16 | 19 3/32 | 8 15/32 | 12 29/32 | 28 9/32 | 16 17/32 | 51 1/32 | 36 7/32 | 33 27/32 | 2 3/4 | 2822 |
1000 | 9 7/16 | 9 7/16 | 20 9/32 | 8 15/32 | 13 3/4 | 28 9/32 | 16 17/32 | 52 19/32 | 37 | 35 7/16 | 2 3/4 | 3219 |
1250 | 10 1/4 | 10 5/8 | 23 1/32 | 9 1/16 | 14 17/32 | 30 1/4 | 17 23/32 | 57 5/16 | 40 11/32 | 38 3/16 | 2 3/4 | 4387 |
1500 | 11 1/32 | 11 13/32 | 24 19/32 | 9 1/16 | 14 17/32 | 32 7/32 | 17 23/32 | 61 1/4 | 40 11/32 | 39 3/4 | 2 3/4 | 5291 |
working | diameter | diameter | diameter | width | width | length | width | length | length | width | thickness | bearing | weight |
load | body | pin | eye | eye | inside | inside | bow | bolt | nut | surface | each | ||
limit | |||||||||||||
a | b | c | d | e | f | g | h | i | j | k | l | ||
t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
7 | 22 | 22 | 46 | 19 | 32 | 96 | 64 | 153 | 115 | 110 | 19 | 41 | 2 |
12.5 | 28 | 28 | 61 | 25 | 44 | 121 | 82 | 197 | 151 | 146 | 24 | 54 | 4 |
18 | 35 | 35 | 69 | 30 | 54 | 148 | 102 | 239 | 175 | 180 | 29 | 64 | 7 |
30 | 40 | 42 | 90 | 35 | 69 | 165 | 126 | 279 | 211 | 200 | 34 | 79 | 13 |
40 | 55 | 51 | 109 | 45 | 84 | 199 | 140 | 331 | 252 | 235 | 38 | 97 | 21 |
55 | 60 | 57 | 115 | 55 | 90 | 240 | 160 | 389 | 299 | 270 | 45 | 100 | 30 |
75 | 68 | 70 | 125 | 54 | 110 | 290 | 185 | 473 | 317 | 317 | 40 | 120 | 45 |
125 | 85 | 80 | 154 | 85 | 137 | 366 | 220 | 583 | 413 | 390 | 40 | 150 | 84 |
150 | 94 | 95 | 179 | 89 | 147 | 391 | 253 | 645 | 445 | 434 | 50 | 170 | 117 |
200 | 110 | 105 | 199 | 100 | 158 | 481 | 280 | 759 | 480 | 482 | 50 | 205 | 179 |
250 | 126 | 120 | 227 | 110 | 179 | 542 | 300 | 859 | 535 | 530 | 60 | 240 | 260 |
300 | 135 | 134 | 245 | 122 | 195 | 601 | 350 | 947 | 590 | 620 | 70 | 265 | 350 |
400 | 160 | 160 | 293 | 145 | 231 | 576 | 370 | 985 | 675 | 690 | 80 | 320 | 580 |
500 | 170 | 180 | 328 | 160 | 263 | 681 | 450 | 1131 | 748 | 790 | 90 | 339 | 780 |
600 | 190 | 200 | 348 | 170 | 289 | 741 | 490 | 1234 | 809 | 865 | 100 | 370 | 980 |
700 | 200 | 215 | 392 | 190 | 315 | 751 | 540 | 1284 | 879 | 901 | 100 | 400 | 1360 |
800 | 218 | 230 | 420 | 200 | 342 | 851 | 554 | 1426 | 942 | 947 | 110 | 420 | 1430 |
900 | 242 | 255 | 466 | 220 | 368 | 851 | 580 | 1488 | 1023 | 1023 | 120 | 440 | 1650 |
1000 | 260 | 270 | 490 | 240 | 399 | 851 | 614 | 1532 | 1103 | 1107 | 120 | 460 | 2970 |
1250 | 285 | 300 | 510 | 260 | 452 | 931 | 650 | 1666 | 1227 | 1182 | 150 | 530 | 3700 |
1550 | 285 | 320 | 550 | 280 | 483 | 950 | 680 | 1710 | 1300 | 1253 | 150 | 560 | 4000 |
working | diameter | diameter | diameter | width | width | length | width | length | length | width | thickness | bearing | weight |
load | body | pin | eye | eye | inside | inside | bow | bolt | nut | surface | each | ||
limit | |||||||||||||
a | b | c | d | e | f | g | h | i | j | k | l | ||
t | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | lbs |
7 | 7/8 | 7/8 | 1 13/16 | 3/4 | 1 9/32 | 3 25/32 | 2 17/32 | 6 | 4 17/32 | 4 5/16 | 3/4 | 1 5/8 | 4.41 |
12.5 | 1 1/8 | 1 1/8 | 2 3/8 | 1 | 1 3/4 | 4 3/4 | 3 1/4 | 7 3/4 | 5 15/16 | 5 3/4 | 15/16 | 2 1/8 | 8.82 |
18 | 1 3/8 | 1 3/8 | 2 23/32 | 1 3/16 | 2 1/8 | 5 13/16 | 4 1/32 | 9 13/32 | 6 7/8 | 7 3/32 | 1 5/32 | 2 17/32 | 18 |
30 | 1 9/16 | 1 21/32 | 3 17/32 | 1 3/8 | 2 23/32 | 6 1/2 | 4 31/32 | 10 31/32 | 8 5/16 | 7 7/8 | 1 11/32 | 3 1/8 | 29 |
40 | 2 5/32 | 2 | 4 9/32 | 1 25/32 | 3 5/16 | 7 27/32 | 5 1/2 | 13 1/32 | 9 29/32 | 9 1/4 | 1 1/2 | 3 13/16 | 46 |
55 | 2 3/8 | 2 1/4 | 4 17/32 | 2 5/32 | 3 17/32 | 9 7/16 | 6 5/16 | 15 5/16 | 11 25/32 | 10 5/8 | 1 25/32 | 3 15/16 | 66 |
75 | 2 11/16 | 2 3/4 | 4 29/32 | 2 1/8 | 4 11/32 | 11 13/32 | 7 9/32 | 18 5/8 | 12 15/32 | 12 15/32 | 1 9/16 | 4 23/32 | 99 |
125 | 3 11/32 | 3 5/32 | 6 1/16 | 3 11/32 | 5 13/32 | 14 13/32 | 8 21/32 | 22 15/16 | 16 1/4 | 15 11/32 | 1 9/16 | 5 29/32 | 185 |
150 | 3 11/16 | 3 3/4 | 7 1/16 | 3 1/2 | 5 25/32 | 15 13/32 | 9 31/32 | 25 13/32 | 17 17/32 | 17 3/32 | 1 31/32 | 6 11/16 | 257 |
200 | 4 11/32 | 4 1/8 | 7 27/32 | 3 15/16 | 6 7/32 | 18 15/16 | 11 1/32 | 29 7/8 | 18 29/32 | 18 31/32 | 1 31/32 | 8 1/16 | 395 |
250 | 4 31/32 | 4 23/32 | 8 15/16 | 4 11/32 | 7 1/16 | 21 11/32 | 11 13/16 | 33 13/16 | 21 1/16 | 20 7/8 | 2 3/8 | 9 7/16 | 571 |
300 | 5 5/16 | 5 9/32 | 9 21/32 | 4 13/16 | 7 11/16 | 23 21/32 | 13 25/32 | 37 9/32 | 23 7/32 | 24 13/32 | 2 3/4 | 10 7/16 | 770 |
400 | 6 5/16 | 6 5/16 | 11 17/32 | 5 23/32 | 9 3/32 | 22 11/16 | 14 9/16 | 38 25/32 | 26 9/16 | 27 5/32 | 3 5/32 | 12 19/32 | 1279 |
500 | 6 11/16 | 7 3/32 | 12 29/32 | 6 5/16 | 10 11/32 | 26 13/16 | 17 23/32 | 44 17/32 | 29 7/16 | 31 3/32 | 3 17/32 | 13 11/32 | 1720 |
600 | 7 15/32 | 7 7/8 | 13 11/16 | 6 11/16 | 11 3/8 | 29 3/16 | 19 9/32 | 48 19/32 | 31 27/32 | 34 1/16 | 3 15/16 | 14 9/16 | 2161 |
700 | 7 7/8 | 8 15/32 | 15 7/16 | 7 15/32 | 12 13/32 | 29 9/16 | 21 1/4 | 50 9/16 | 34 19/32 | 35 15/32 | 3 15/16 | 15 3/4 | 2998 |
800 | 8 19/32 | 9 1/16 | 16 17/32 | 7 7/8 | 13 15/32 | 33 1/2 | 21 13/16 | 56 5/32 | 37 3/32 | 37 9/32 | 4 11/32 | 16 17/32 | 3153 |
900 | 9 17/32 | 10 1/32 | 18 11/32 | 8 21/32 | 14 1/2 | 33 1/2 | 22 27/32 | 58 19/32 | 40 9/32 | 40 9/32 | 4 23/32 | 17 5/16 | 3638 |
1000 | 10 1/4 | 10 5/8 | 19 9/32 | 9 7/16 | 15 23/32 | 33 1/2 | 24 3/16 | 60 5/16 | 43 7/16 | 43 19/32 | 4 23/32 | 18 1/8 | 6548 |
1250 | 11 7/32 | 11 13/16 | 20 3/32 | 10 1/4 | 17 25/32 | 36 21/32 | 25 19/32 | 65 19/32 | 48 5/16 | 46 17/32 | 5 29/32 | 20 /8 | 8157 |
1550 | 11 7/32 | 12 19/32 | 21 21/32 | 11 1/32 | 19 1/32 | 37 13/32 | 26 25/32 | 67 5/16 | 51 3/16 | 49 11/32 | 5 29/32 | 22 1/16 | 8818 |

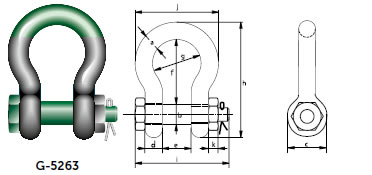

working | diameter | diameter | diameter | width | width | length | width | length | length | width | thickness | weight |
load | bow | pin | eye | eye | inside | inside | bow | bolt | nut | each | ||
limit | ||||||||||||
a | b | c | d | e | f | g | h | i | j | k | ||
t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
3.3 | 13.5 | 16 | 34 | 13 | 22 | 51 | 32 | 89 | 82 | 58 | 13 | 0.40 |
5 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 110 | 98 | 75 | 17 | 0.73 |
7 | 19 | 22 | 46 | 19 | 31 | 76 | 51 | 129 | 114 | 89 | 19 | 1.19 |
9.5 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 130 | 102 | 22 | 1.73 |
12.5 | 25 | 28 | 59 | 25 | 43 | 95 | 68 | 164 | 150 | 118 | 25 | 2.56 |
15 | 28 | 32 | 66 | 28 | 47 | 108 | 75 | 185 | 166 | 131 | 27 | 3.6 |
18 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 178 | 147 | 30 | 4.95 |
21 | 35 | 38 | 80 | 35 | 57 | 133 | 92 | 227 | 197 | 162 | 33 | 6.62 |
30 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 217 | 175 | 34 | 8.11 |
40 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 260 | 216 | 40 | 15 |
55 | 57 | 57 | 117 | 57 | 83 | 197 | 138 | 341 | 303 | 252 | 46 | 23 |
85 | 70 | 70 | 143 | 70 | 105 | 260 | 180 | 437 | 363 | 320 | 56 | 44 |
120 | 83 | 83 | 162 | 83 | 127 | 329 | 190 | 535 | 425 | 356 | 66 | 72 |
150** | 95 | 95 | 208 | 95 | 147 | 400 | 238 | 647 | 524 | 428 | 50 | 112 |
175** | 105 | 108 | 238 | 105 | 169 | 410 | 275 | 688 | 567 | 485 | 50 | 160 |
working | diameter | diameter | diameter | width | width | length | width | length | length | width | thickness | weight |
load | bow | pin | eye | eye | inside | inside | bow | bolt | nut | each | ||
limit | ||||||||||||
a | b | c | d | e | f | g | h | i | j | k | ||
t | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | lbs |
3.3 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 2 | 1 1/4 | 3 1/2 | 3 7/32 | 2 9/32 | 1/2 | 0.88 |
5 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 17/32 | 1 11/16 | 4 11/32 | 3 27/32 | 2 15/16 | 21/32 | 1.61 |
7 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 3 | 2 | 5 3/32 | 4 1/2 | 3 1/2 | 3/4 | 2.62 |
9.5 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 3 9/32 | 2 9/32 | 5 21/32 | 5 1/8 | 4 1/32 | 7/8 | 3.81 |
12.5 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 3/4 | 2 11/16 | 6 15/32 | 5 29/32 | 4 21/32 | 31/32 | 5.64 |
15 | 1 1/8 | 1 1/4 | 2 19/32 | 1 3/32 | 1 27/32 | 4 1/4 | 2 15/16 | 7 9/32 | 6 17/32 | 5 5/32 | 1 1/16 | 7.94 |
18 | 1 1/4 | 1 3/8 | 2 27/32 | 1 1/4 | 2 | 4 17/32 | 3 9/32 | 7 29/32 | 7 | 5 25/32 | 1 3/16 | 10.91 |
21 | 1 3/8 | 1 1/2 | 3 5/32 | 1 3/8 | 2 1/4 | 5 1/4 | 3 5/8 | 8 15/16 | 7 3/4 | 6 3/8 | 1 5/16 | 14.59 |
30 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 3/4 | 3 29/32 | 9 13/16 | 8 17/32 | 6 7/8 | 1 5/16 | 17.88 |
40 | 1 3/4 | 2 | 4 1/16 | 1 25/32 | 2 29/32 | 7 | 4 31/32 | 11 13/16 | 10 1/4 | 8 1/2 | 1 9/16 | 33.07 |
55 | 2 | 2 1/4 | 4 19/32 | 2 1/4 | 3 9/32 | 7 3/4 | 5 7/16 | 13 7/16 | 11 15/16 | 9 29/32 | 1 25/32 | 50.71 |
85 | 2 1/2 | 2 3/4 | 5 5/8 | 2 3/4 | 4 1/8 | 10 1/4 | 7 3/32 | 17 7/32 | 14 9/32 | 12 19/32 | 2 7/32 | 97 |
120 | 3 | 3 1/4 | 6 3/8 | 3 9/32 | 5 | 12 15/16 | 7 15/32 | 21 1/16 | 16 23/32 | 14 1/32 | 2 5/8 | 158.73 |
150** | 3 3/4 | 3 3/4 | 8 3/16 | 3 3/4 | 5 25/32 | 15 3/4 | 9 3/8 | 25 15/32 | 20 5/8 | 16 27/32 | 1 31/32 | 246.92 |
175** | 4 | 4 1/4 | 9 3/8 | 4 1/8 | 6 21/32 | 16 5/32 | 10 13/16 | 27 3/32 | 22 5/16 | 19 3/32 | 1 31/32 | 352.74 |
working | diameter | diameter | diameter | width | width | length | width | length | length | width | thickness | securing | securing | torque | weight |
load | bow | pin | eye | eye | inside | inside | bow | bolt | nut | bolt | bolt | each | |||
limit | thread | length | |||||||||||||
a | b | c | d | e | f | g | h | i | j | k | l | m | |||
t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | Nm | kg |
3.3 | 13.5 | 16 | 34 | 13 | 22 | 51 | 32 | 89 | 82 | 58 | 13 | M6 | 35 | 8.4 | 0.40 |
5 | 16 | 19 | 40 | 16 | 27 | 64 | 43 | 110 | 98 | 75 | 17 | M6 | 40 | 8.4 | 0.73 |
7 | 19 | 22 | 46 | 19 | 31 | 76 | 51 | 129 | 114 | 89 | 19 | M6 | 45 | 8.4 | 1.19 |
9.5 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 130 | 102 | 22 | M8 | 50 | 20 | 1.73 |
12.5 | 25 | 28 | 59 | 25 | 43 | 95 | 68 | 164 | 150 | 118 | 25 | M8 | 55 | 20 | 2.56 |
15 | 28 | 32 | 66 | 28 | 47 | 108 | 75 | 185 | 166 | 131 | 27 | M10 | 60 | 39 | 3.6 |
18 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 178 | 147 | 30 | M10 | 65 | 39 | 4.95 |
21 | 35 | 38 | 80 | 35 | 57 | 133 | 92 | 227 | 197 | 162 | 33 | M10 | 70 | 39 | 6.62 |
30 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 217 | 175 | 34 | M8 | 75 | 20 | 8.11 |
40 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 260 | 216 | 40 | M8 | 90 | 20 | 15 |
55 | 57 | 57 | 117 | 57 | 83 | 197 | 138 | 341 | 303 | 252 | 46 | M10 | 100 | 39 | 23 |
85 | 70 | 70 | 143 | 70 | 105 | 260 | 180 | 437 | 363 | 320 | 56 | M12 | 120 | 68 | 44 |
120 | 83 | 83 | 162 | 83 | 127 | 329 | 190 | 535 | 425 | 356 | 66 | M12 | 140 | 68 | 72 |
150** | 95 | 95 | 208 | 95 | 147 | 400 | 238 | 647 | 524 | 428 | 50 | M12 | 150 | 68 | 112 |
175** | 105 | 108 | 238 | 105 | 169 | 410 | 275 | 688 | 567 | 485 | 50 | M12 | 160 | 68 | 160 |
working | diameter | diameter | diameter | width | width | length | width | length | length | width | thickness | securing | securing | torque | weight |
load | bow | pin | eye | eye | inside | inside | bow | bolt | nut | bolt | bolt | each | |||
limit | thread | length | |||||||||||||
a | b | c | d | e | f | g | h | i | j | k | l | m | |||
t | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | mm | inch | ft lb | lbs |
3.3 | 1/2 | 5/8 | 1 11/32 | 1/2 | 7/8 | 2 | 1 1/4 | 3 1/2 | 3 7/32 | 2 9/32 | 1/2 | M6 | 1 3/8 | 6.2 | 0.88 |
5 | 5/8 | 3/4 | 1 9/16 | 5/8 | 1 1/16 | 2 17/32 | 1 11/16 | 4 11/32 | 3 27/32 | 2 15/16 | 21/32 | M6 | 1 9/16 | 6.2 | 1.61 |
7 | 3/4 | 7/8 | 1 13/16 | 3/4 | 1 7/32 | 3 | 2 | 5 3/32 | 4 1/2 | 3 1/2 | 3/4 | M6 | 1 25/32 | 6.2 | 2.62 |
9.5 | 7/8 | 1 | 2 1/16 | 7/8 | 1 13/32 | 3 9/32 | 2 9/32 | 5 21/32 | 5 1/8 | 4 1/32 | 7/8 | M8 | 1 31/32 | 14.7 | 3.81 |
12.5 | 1 | 1 1/8 | 2 5/16 | 31/32 | 1 11/16 | 3 3/4 | 2 11/16 | 6 15/32 | 5 29/32 | 4 21/32 | 31/32 | M8 | 2 5/32 | 14.7 | 5.64 |
15 | 1 1/8 | 1 1/4 | 2 19/32 | 1 3/32 | 1 27/32 | 4 1/4 | 2 15/16 | 7 9/32 | 6 17/32 | 5 5/32 | 1 1/16 | M10 | 2 3/8 | 28.7 | 7.94 |
18 | 1 1/4 | 1 3/8 | 2 27/32 | 1 1/4 | 2 | 4 17/32 | 3 9/32 | 7 29/32 | 7 | 5 25/32 | 1 3/16 | M10 | 2 9/16 | 28.7 | 10.91 |
21 | 1 3/8 | 1 1/2 | 3 5/32 | 1 3/8 | 2 1/4 | 5 1/4 | 3 5/8 | 8 15/16 | 7 3/4 | 6 3/8 | 1 5/16 | M10 | 2 3/4 | 28.7 | 14.59 |
30 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 3/4 | 3 29/32 | 9 13/16 | 8 17/32 | 6 7/8 | 1 5/16 | M8 | 2 15/16 | 14.7 | 17.88 |
40 | 1 3/4 | 2 | 4 1/16 | 1 25/32 | 2 29/32 | 7 | 4 31/32 | 11 13/16 | 10 1/4 | 8 1/2 | 1 9/16 | M8 | 3 17/32 | 14.7 | 33.07 |
55 | 2 | 2 1/4 | 4 19/32 | 2 1/4 | 3 9/32 | 7 3/4 | 5 7/16 | 13 7/16 | 11 15/16 | 9 29/32 | 1 25/32 | M10 | 3 15/16 | 28.7 | 50.71 |
85 | 2 1/2 | 2 3/4 | 5 5/8 | 2 3/4 | 4 1/8 | 10 1/4 | 7 3/32 | 17 7/32 | 14 9/32 | 12 19/32 | 2 7/32 | M12 | 4 23/32 | 50.1 | 97 |
120 | 3 | 3 1/4 | 6 3/8 | 3 9/32 | 5 | 12 15/16 | 7 15/32 | 21 1/16 | 16 23/32 | 14 1/32 | 2 5/8 | M12 | 5 1/2 | 50.1 | 158.73 |
150** | 3 3/4 | 3 3/4 | 8 3/16 | 3 3/4 | 5 25/32 | 15 3/4 | 9 3/8 | 25 15/32 | 20 5/8 | 16 27/32 | 1 31/32 | M12 | 5 29/32 | 50.1 | 246.92 |
175** | 4 | 4 1/4 | 9 3/8 | 4 1/8 | 6 21/32 | 16 5/32 | 10 13/16 | 27 3/32 | 22 5/16 | 19 3/32 | 1 31/32 | M12 | 6 5/16 | 50.1 | 352.74 |

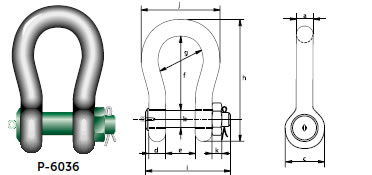

working | diameter | diameter | diameter | width | width | length | width | length | length | width | thickness | weight |
load | bow | pin | eye | eye | inside | inside | bow | bolt | nut | each | ||
limit | ||||||||||||
a | b | c | d | e | f | g | h | i | j | k | ||
t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
4.75 | 22 | 25 | 52 | 22 | 63 | 112 | 88 | 173 | 157 | 132 | 22 | 2.08 |
6.5 | 25 | 28 | 59 | 25 | 75 | 135 | 105 | 204 | 183 | 155 | 25 | 3.14 |
8.5 | 28 | 32 | 66 | 28 | 82 | 148 | 115 | 225 | 205 | 171 | 27 | 4.36 |
9.5 | 32 | 35 | 72 | 32 | 90 | 162 | 126 | 248 | 224 | 190 | 30 | 5.95 |
12 | 35 | 38 | 79 | 35 | 100 | 180 | 140 | 274 | 245 | 210 | 33 | 7.87 |
16 | 38 | 42 | 88 | 38 | 106 | 216 | 159 | 319 | 248 | 235 | 19 | 12.5 |
25 | 45 | 50 | 103 | 45 | 127 | 248 | 175 | 370 | 296 | 265 | 23 | 16.7 |
30 | 50 | 57 | 118 | 50 | 146 | 273 | 207 | 411 | 332 | 307 | 26 | 25 |
55 | 65 | 70 | 145 | 65 | 165 | 314 | 213 | 487 | 389 | 343 | 32 | 45 |
75 | 83 | 83 | 164 | 83 | 184 | 330 | 254 | 537 | 455 | 420 | 39 | 77 |
working | diameter | diameter | diameter | width | width | length | width | length | length | width | thickness | weight |
load | bow | pin | eye | eye | inside | inside | bow | bolt | nut | each | ||
limit | ||||||||||||
a | b | c | d | e | f | g | h | i | j | k | ||
t | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | lbs |
4.75 | 7/8 | 1 | 2 1/16 | 7/8 | 2 15/32 | 4 13/32 | 3 15/32 | 6 13/16 | 6 3/16 | 5 3/16 | 7/8 | 4.59 |
6.5 | 1 | 1 1/8 | 2 5/16 | 31/32 | 2 15/16 | 5 5/16 | 4 1/8 | 8 1/32 | 7 7/32 | 6 3/32 | 31/32 | 6.92 |
8.5 | 1 1/8 | 1 1/4 | 2 19/32 | 1 3/32 | 3 7/32 | 5 13/16 | 4 17/32 | 8 27/32 | 8 1/16 | 6 23/32 | 1 1/16 | 9.61 |
9.5 | 1 1/4 | 1 3/8 | 2 27/32 | 1 1/4 | 3 17/32 | 6 3/8 | 4 31/32 | 9 3/4 | 8 13/16 | 7 15/32 | 1 3/16 | 13.12 |
12 | 1 3/8 | 1 1/2 | 3 1/8 | 1 3/8 | 3 15/16 | 7 3/32 | 5 1/2 | 10 25/32 | 9 21/32 | 8 9/32 | 1 5/16 | 17.35 |
16 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 4 3/16 | 8 1/2 | 6 1/4 | 12 9/16 | 9 3/4 | 9 1/4 | 3/4 | 27.56 |
25 | 1 3/4 | 2 | 4 1/16 | 1 25/32 | 5 | 9 3/4 | 6 7/8 | 14 9/16 | 11 21/32 | 10 7/16 | 29/32 | 36.82 |
30 | 2 | 2 1/4 | 4 21/32 | 1 31/32 | 5 3/4 | 10 3/4 | 8 5/32 | 16 3/16 | 13 1/16 | 12 3/32 | 1 1/32 | 55.12 |
55 | 2 1/2 | 2 3/4 | 5 23/32 | 2 9/16 | 6 1/2 | 12 3/8 | 8 3/8 | 19 3/16 | 15 5/16 | 13 1/2 | 1 1/4 | 105.82 |
75 | 3 1/4 | 3 1/4 | 6 15/32 | 3 9/32 | 7 1/4 | 13 | 10 | 21 5/32 | 17 29/32 | 16 17/32 | 1 17/32 | 169.76 |
